Article 3.VMS.01.TS100 and 3.VMS.02.TS100

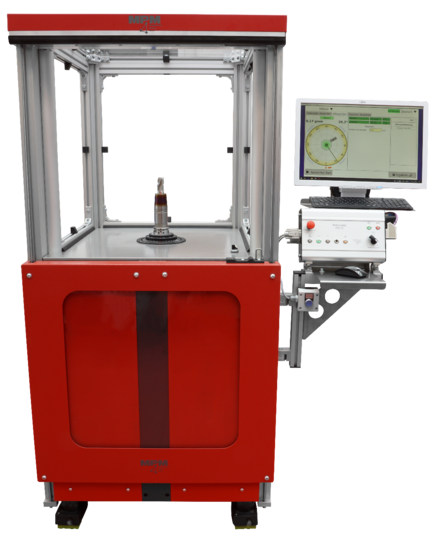

Vertical balancing machine
for serial parts in 1 plane or 1 + 2 planes
- Machine construction in stone and aluminium construction profile

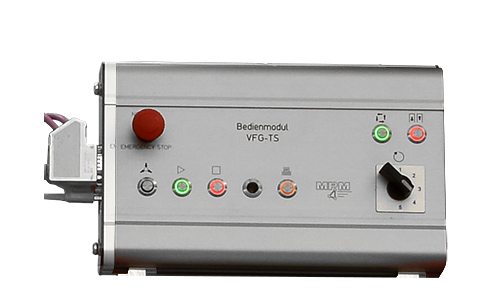

- Quickstart operating module for customer PC connection (Windows10)
- CAN USB adapter and data cable

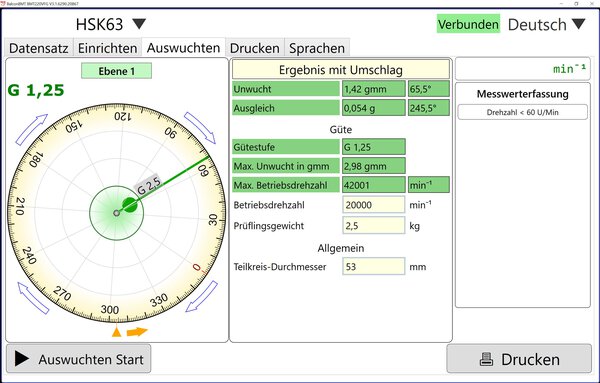

- Balancing software with 7 balancing methods
- Protocol and label printing
- 360° scale ring plus line laser
- 1.5 kW drive motor with frequency converter
- Vertical sliding door, automatic opening / closing, incl. safety bar
- Transparent protective hood with safety interlock
- Rotor weight up to approx. 50 kg
- Rotor-Ø up to approx. 720 mm
- Unbalance reduction ratio > 95%.
Catalog-# / Description
Technical details
| Technical data | 3.VMS.01.TS100 |
|---|---|
| Machine designation: | VMS |
| Machine type: | 3.VMS.01.TS100 |
| Balancing planes: | 1-plane |
| Power supply: | 230 V |
| Frequency: | 50 Hz |
| Recommended fuse protection: | 16 A |
| Power input: | max. 6 kVA |
| Mass: | 850 kg |
| Air pressure: | min. 6,5 bar; max. 8 bar |
| Speed range: | 200 to 2500 1/min |

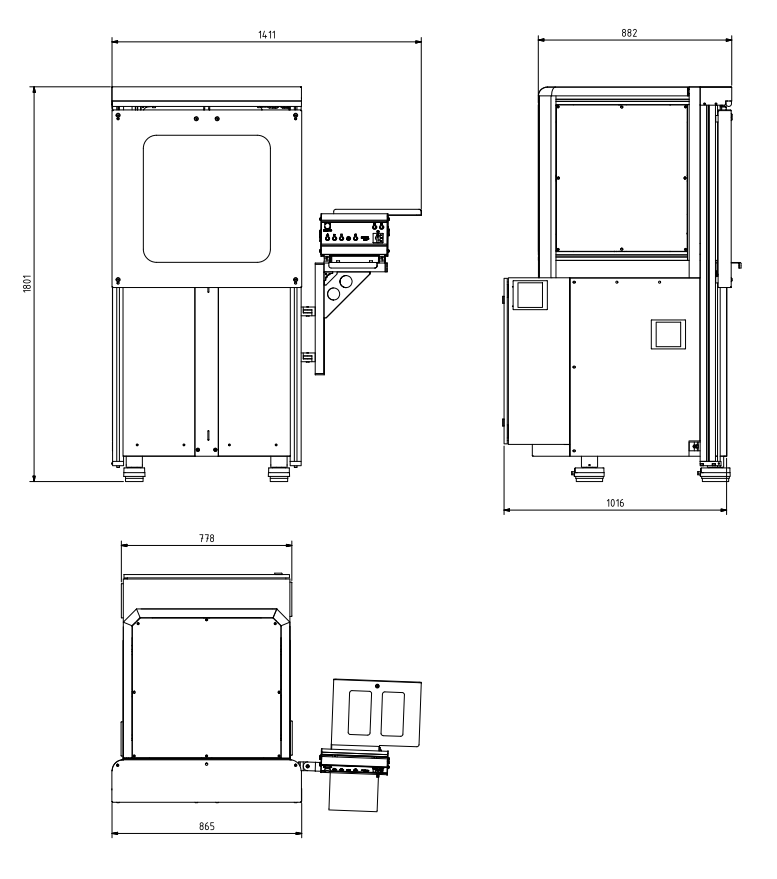

| Machine dimensions (without protection and service area): | 1017 mm / 781 mm / 1833 mm L / W /H |
| Electromagnetic compatibility: | In accordance with the EMC Directive and the applicable EMC standards for use in the industrial sector |
| Control: | 3.BM.VFG.TS |
| Interfaces: | 2x RS232 |
| Technical data | 3.VMS.02.TS100 |
|---|---|
| Machine designation: | VMS |
| Machine type: | 3.VMS.01.TS100 |
| Balancing planes: | 1+2-planes |
| Power supply: | 230 V |
| Frequency: | 50 Hz |
| Recommended fuse protection: | 16 A |
| Power input: | max. 6 kVA |
| Mass: | 850 kg |
| Air pressure: | min. 6,5 bar; max. 8 bar |
| Speed range: | 200 to 2500 1/min |
| Machine dimensions (without protection and service area): | 1017 mm / 781 mm / 1833 mm L / W /H |
| Electromagnetic compatibility: | In accordance with the EMC Directive and the applicable EMC standards for use in the industrial sector |
| Control: | 3.BM.VFG.TS |
| Interfaces: | 2x RS232 |
| Accessory | Description | Article | |
|---|---|---|---|
 | Clamping adapter SK/BT | 3.A.SK/BTxx | to product |
 | Clamping adapter HSK | 3.A.HSKxx | to product |
 | Clamping adapter for polygon-cone shaft | 3.A.P.PSCxx | to product |
 | Clamping adapter for collets | 3.A.SZ | to product |
 | Clamping adapter for expansion sleeves | 3.A.SH | to product |
 | CAN-USB Adapter | 3.CAN.USB.TS | to product |
 | Data cable, 9-pin | 3.DKC.B09 | to product |
 | Precision pocket scales | 3.CM | to product |
 | Grub screw set M6, especially for tool holders | 3.0.WGS07 | to product |
 | Grub screw sets | 3.0.WGS | to product |
 | Vibration sensor for balancing machine 3.VMS / 3.ABZ | 3.PU.M1.4.00,3.oM-AMA | to product |
 | Line laser | 3.LP.06 | to product |
 | Test masses for setup / calibration | 3.TG | to product |
 | Balancing putty | 3.0.WK02 | to product |
