Article 3.BMT200-1.OP100 and 3.BMT200-2.OP100

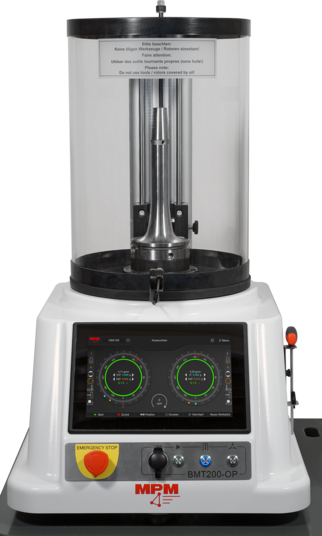

Stand alone balancing station BMT200.OP
No software installation needed. For tool holders up to HSK125 / SK50 / PSC 8
- Highest balancing accuracy at the best price
- Simplest operation for everyone
- Smallest (< 0.1 gram) imbalances detectable
- For tool holders up to HSK125 / SK50 / PSC 8
- Highest precision (< 0,5gmm)
- Improved ease of use > 90%.
- For 1-+ 2-plane balancing
- Balancing methods: gram, degree, spread angle, fixed location, radial + axial drilling, milling

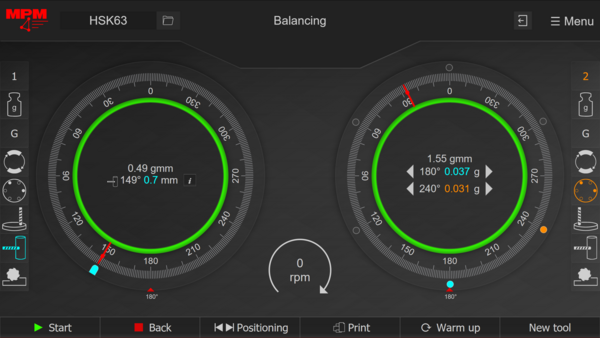

- Display: gmm, gram, quality grade
- Workpiece weight up to max.: 20kg, workpiece-Ø up to approx. 270mm
- Workpiece length up to approx. 400mm
- Immediately usable
- Test report at the touch of a button
- Weight only approx. 50 kg
- HDMI interface for additional visualisation
on an external monitor, only 3.BMT200-1(2).OP100.HDMI
Catalog-# / Description
| Catalog-# | Order-# | Description |
|---|---|---|
| 3.BMT200-1.OP100 | 1062947A | Balancing station for 1 plane |
| 3.BMT200-1.OP100.HDMI | 1067989A | Balancing station for 1 plane with HDMI interface |
| 3.BMT200-2.OP100 | 1063123A | Balancing station for 1 + 2 planes |
| 3.BMT200-2.OP100.HDMI | 1067992A | Balancing station for 1 + 2 planes with HDMI interface |
Technical details
| Technical data | |
|---|---|
| Power supply | 115/230V, 50-60Hz |
| Power input approx. | 140W |
| Speed range | 500...1800-1 ±1min-1 |
| Operation | Quick Start Tastenfeld |
| Measuring accuracy approx. | 0,5gmm/kg |
| Spindle adapter | Ø 90mm |
| Weight range approx. | 20kg |

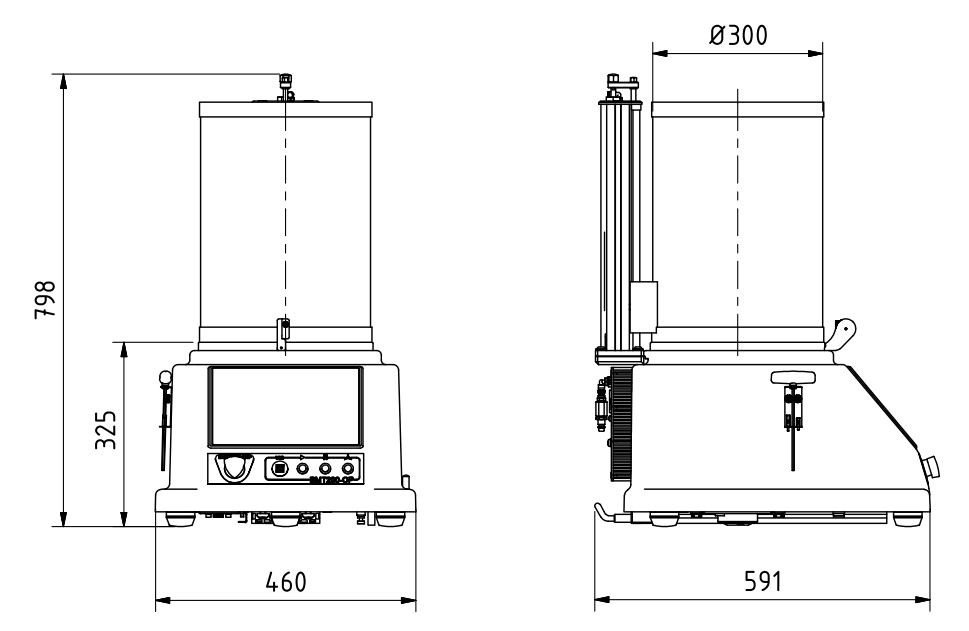

| Dimensions WxHxD approx. | 460x790x590mm |
| Weight approx. | 45kg |
| Temperature (operating): | 0°C...+50°C |
| Temperature (storage): | -10°C...+60°C |
| Humidity: | 20%....50% rel. Feuchte |
| Operating pressure | min. 6 bar max. 8 bar |
| Interfaces | 2x USB, 1x RJ45 (LAN), 1x HDMI (only 3.BMT200-1(2).OP100.HDMI) |
| Accessory | Description | Article | |
|---|---|---|---|
 | Clamping adapter SK/BT | 3.A.SK/BTxx | to product |
 | Clamping adapter HSK | 3.A.HSKxx | to product |
 | Clamping adapter for polygon-cone shaft | 3.A.P.PSCxx | to product |
 | Clamping adapter for collets | 3.A.SZ | to product |
 | Clamping adapter for expansion sleeves | 3.A.SH | to product |
 | CAN-USB Adapter | 3.CAN.USB.TS | to product |
 | Data cable, 9-pin | 3.DKC.B09 | to product |
 | Balancing workstation | 3.BD | to product |
 | Special protective covers | 3.SSH | to product |
 | Precision pocket scales | 3.CM | to product |
 | Grub screw set M6, especially for tool holders | 3.0.WGS07 | to product |
 | Grub screw sets | 3.0.WGS | to product |
 | Vibration sensor for BMT station | 3.PU.M1 | to product |
 | Line laser | 3.LP.04 | to product |
 | Test masses for setup / calibration | 3.TG | to product |
 | Balancing putty | 3.0.WK02 | to product |
